Monitor mouse clicks, position and scroll.

• Send position to a Text source.
• Send clicks for mouse button 1, 2 and 3 to a Text source.
• Send horizontal and veritcal scroll to a Text source.

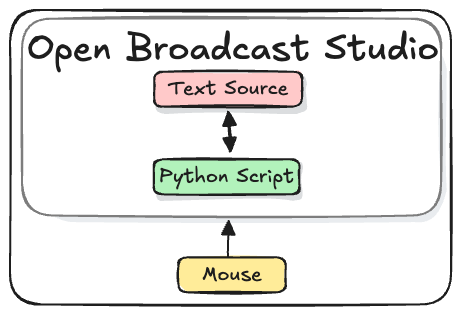

The mouse input values are passed to a Text source.

The User creates text sources to store and display incoming position, click and scroll values.

A text source is used because changes to a text source are easily observed by WebSocket clients. When a text source is updated an "InputSettingsChanged" event is sent to webSocket clients. See the Mouse Overlay Example tutorial for a complete example.

Setup

Install Python dependencies

This script uses the Pynput Library.

1. Open the Terminal app
2. Enter the pip command

 python3.11 -m pip install pynput

Add the Mouse Input Script to OBS

The "Mouse Input" script and accompanying OBS Collection can be found on Github.
python mouse input repo

Import the Mouse Input OBS Collection

1. Download the Mouse input Collection
2. In OBS, from the menu select Scene Collection > Import
3. Import the collection
4. Choose the collection Scene Collection

Add the Script

1. Download the Mouse Input Script
2. In OBS, from the menu select Tools > Scripts
3. Click the + Add script button

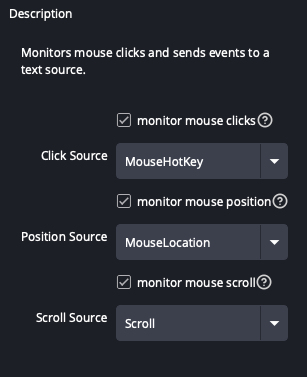

Configure Text Source

Check the mouse inputs to monitor.
